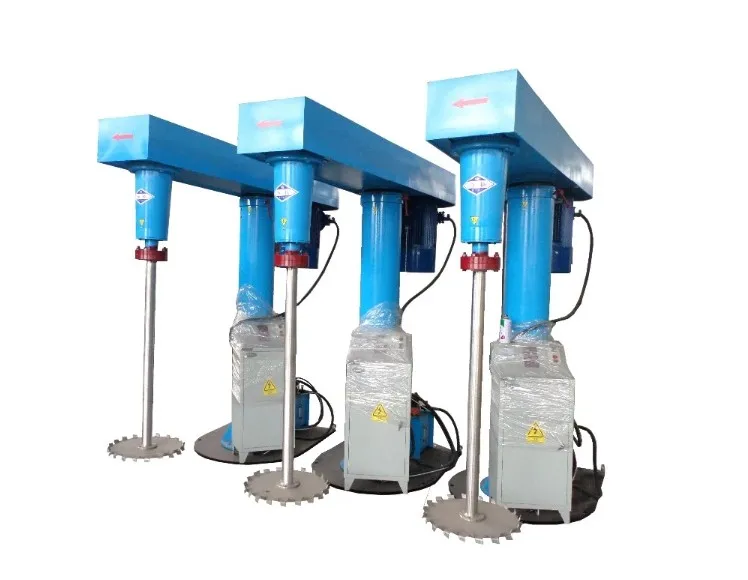

High speed strong viscosity water based 2000L paint mixer/ anti corrosive epoxy paint cheap price stirrer agitator for sale

  • 1 - 4 Sets
    $5,000.00
  • 5 - 9 Sets
    $4,500.00
  • 10 - 99 Sets
    $3,500.00
  • >=100 Sets
    $2,000.00
Model Number:
HK2000V
Lead Time:
Quantity(Sets) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 10 20 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Max. Loading Volume (L):
2000 L
Barrel Volume (L):
2500 L
Mixer Type:
Agitator
Range of Spindle Speed(r.p.m):
1 - 1450 r.p.m
Max. Loading Capacity:
2000
Weight (KG):
3000 KG
Condition:
New
Product Type:
Paint
Application:
Viscous Fluid, Chemicals Processing
Additional Capabilities:
COATING
Place of Origin:
China
Brand Name:
HK
Voltage:
380V/220V
Dimension(L*W*H):
2600*2700*1400MM
Certification:
CE
Power (kW):
50 kW
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Low Noise Level
Applicable Industries:
Building Material Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor, Gear, Gearbox, PLC, Bearing, Engine
Material:
Stainless Steel 304 / SUS316L
Application scope:
High Viscosity Product
Stirrer type:
Dispersion. Tank
Structure:
Main Emulsion Pot
Control:
Button
Mixing speed:
0-2800 R/min
Mixing type:
Electrical Powered Agitator
Feature:
Viscosity 0-10000cps
Capacity:
100-5000L
Motor:
Explosion-proof
Supply Ability
Supply Ability:
500000 Set/Sets per Year
Packaging & Delivery
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 10 20 25 To be negotiated
Video Description
Product Description
- Hydraulic lifting system for production; - Siemens or ABB motor as standard; - Siemens/LG//Danfoss Frenquency conventor optional; - Non-explosion and explosion type of production dispersion equipment are both as standard; - Vacuum production high speed disperser is available; - Customerized equipments is available.
Mode of Motor
Alternative from 2.2KW-132KW
Electric Power Source
220V/380V 50Hz
Handling Capacity
10-10000L
Rotating Speed
0-1450rpm
Mode of Speed control
Frenquency conventor control
Material in contact
SS304 or SS316L
Mode of Lifting
Hydraulic lifting
Framework
Stainless Steel, Carbon Steel
  • Various sispersion disc available

This is some type of dispersion disc head to choose from.

If you want to provide a private order, you can contact me.

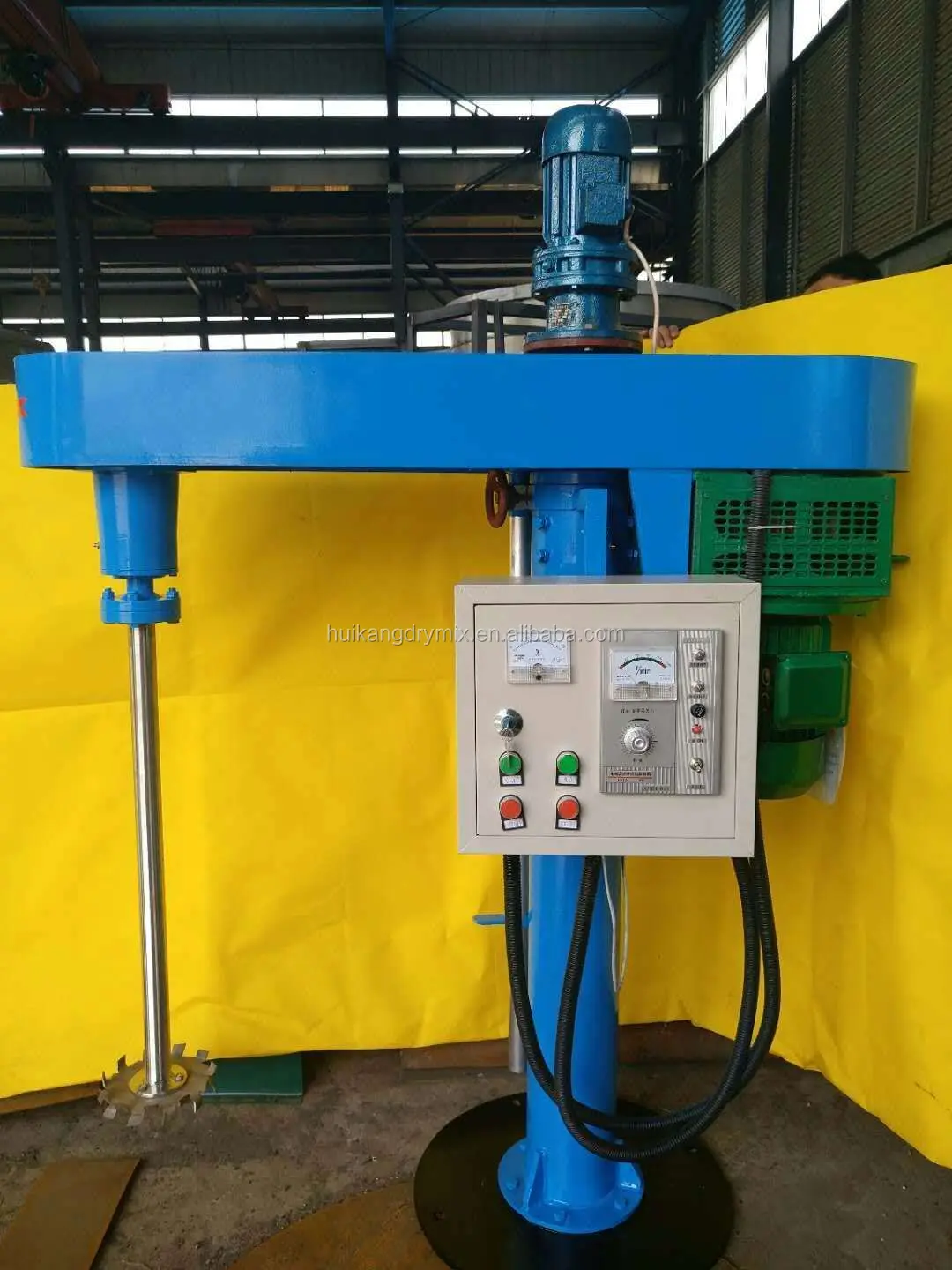

Detailed Images
Size Information
Main Parameters
Model
Capacity
Power
Speed
Disc diameter
Lifting distance
HKSJ-4
≤200
4
0-1450
200
800
HKSJ-7.5
≤400
7.5
0-1450
230
900
HKSJ-11
≤500
11
0-1450
250
900
HKSJ-15
≤700
15
0-1450
280
900
HKSJ-18.5
≤800
18.5
0-1450
300
1100
HKSJ-22
≤1000
22
0-1450
350
1100
HKSJ-30
≤1500
30
0-1450
400
1100
HKSJ-37
≤2000
37
0-1450
400
1600
HKSJ-45
≤2500
45
0-1450
450
1600
HKSJ-55
≤3000
55
0-1450
500
1600
HKSJ-75
≤4000
75
0-950
550
1800

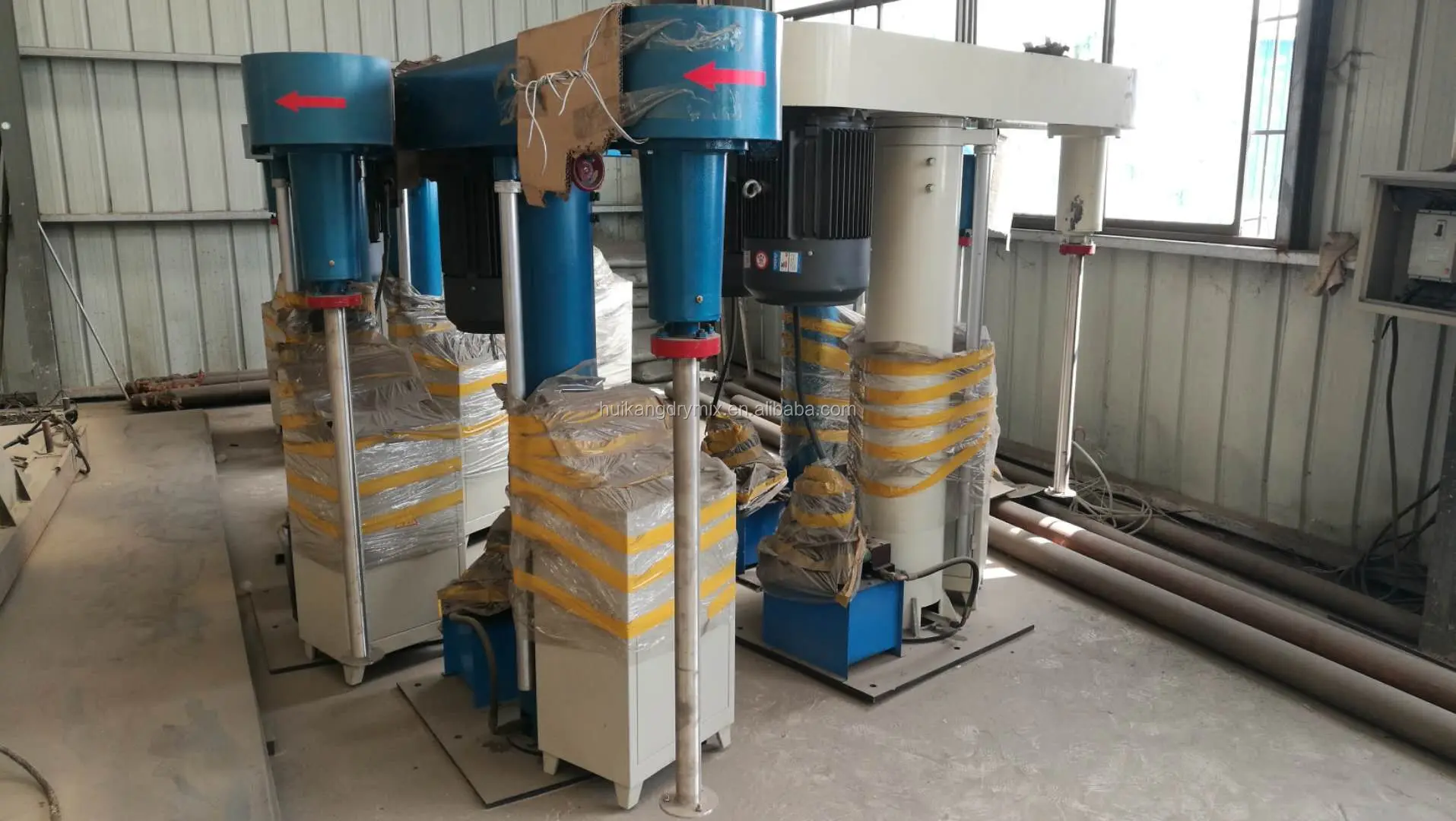

Packing&Shipping
After Sales Service
Pre-sales 1. Muti-language consult, English, Chinese, Russia, etc. 2. Suitable, reasonable technical advise and solutions; 3. Lab room with experiments and instruments for test service to obtain data and production experience; 4. Phone: 0086-021-52913185 ~120 Cell: 13611934398 On-sales 1. Project-Manager system: one customer, one project manager. 2. Schematic drawing for core equipments; 3. Production process follow-up; 4. Factory visit for equipment test before delivery; 5. Technical documents, e.g. English version operational manual, drawing of circuit, etc. After-sales 1. One year warranty; 2. 7×24h service line; 3. Overseas engineering service team for installation and training at your site; 4. Abundant warehouse of spare parts purchasing; 5. Equipment update service; 6. Detailed records of communications;
Company Introduction


FAQ
About Delivery time Q-----What's the delivery term for making business with us? A-----Usually we send the shipment in FOB term.However, the terms of CIF are acceptable which depend on the preference of clients. About Lead Time Q------What's the lead time after placing the order? A------Usually it takes about 15~30 days after we received your confirmation. However, it would depend on our production line schedule(the timing clients place order)and the complication of the item. About Payment Term Q------What's the Payment Term? A------By T/T in Advance, or Irrevocable L/C as Sight.
