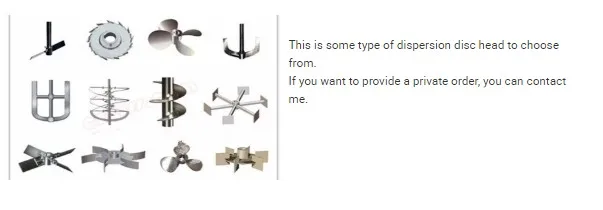

This is some type of dispersion disc head to choose from.
If you want to provide a private order, you can contact me.
Overview
Quick Details
- Max. Loading Volume (L):
-
2000 L
- Barrel Volume (L):
-
2500 L
- Mixer Type:
-
Agitator
- Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
- Max. Loading Capacity:
-
2000
- Weight (KG):
-
2500 KG
- Condition:
-
New
- Product Type:
-
Paint
- Application:
-
Viscous Fluid, Chemicals Processing
- Additional Capabilities:
-
COATING
- Place of Origin:
-
China
- Brand Name:
-
HK
- Voltage:
-
380V/220V
- Dimension(L*W*H):
-
2600*2700*1400MM
- Certification:
-
CE
- Power (kW):
-
45 kW
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- Key Selling Points:
-
Low Noise Level
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
-
None
- Showroom Location:
-
None
- Marketing Type:
-
Ordinary Product
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
2 years
- Core Components:
-
Motor, Gear, Pressure vessel, Gearbox, PLC, Bearing, Engine
- Material:
-
Stainless Steel 304 / SUS316L
- Function:
-
Dispersing
- Machine Type:
-
Dispersion Blender Mixer Machine
- Application scope:
-
High Viscosity Product
- Stirrer type:
-
Dispersion. Tank
- Control:
-
Button
- Structure:
-
Main Emulsion Pot
- Mixing speed:
-
0-2800 R/min
- Mixing type:
-
Electrical Powered Agitator
- Feature:
-
Viscosity 0-10000cps
Supply Ability
- Supply Ability:
- 500000 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
- Port
- Qingdao
- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 1 2 - 10 11 - 50 >50 Est. Time(days) 10 20 25 To be negotiated
Product Description

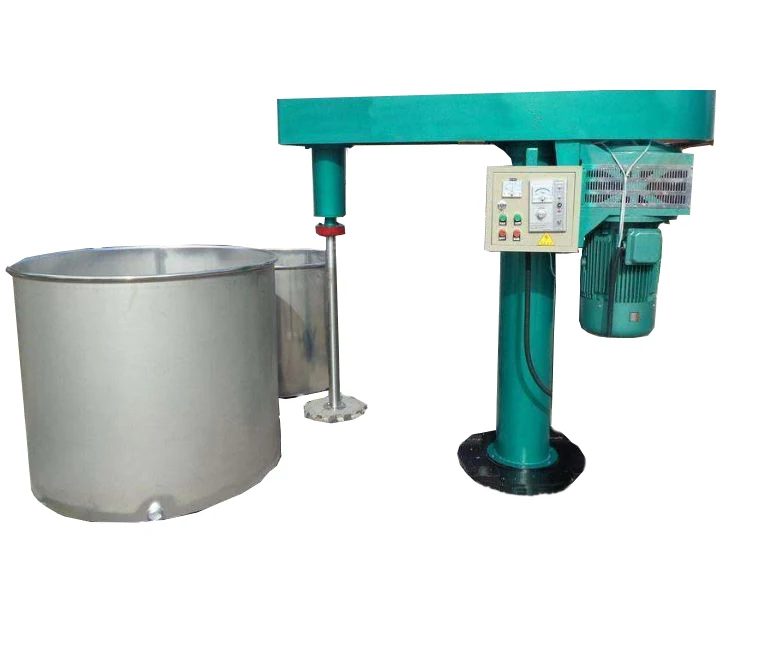

The industrial emulsion latex paint mixer is a new type stirring machine that designed and developed by our company, it is widely applied in dispersing paste such as color paint paint, ink, dye, adhesion, ceramic glaze, magnetic recording materials etc. Disperser is the a good solution for mixing, dispersing and dissolving.
Production high speed disperser is a typical production dispersion equipment.It used for as stirrer, blend, disperser and mix paint,ink,pigments dispersion and others.
The series emulsion paint mixing machine is suitable for pro-ducing paint, ink, coating, dyestuff, paper making and so on in chemical industry. The mixers are used for wet dispersing and mixing liquid-solid material.Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.
Mode of Motor | Alternative from 2.2KW-132KW |
Electric Power Source | 220V/380V 50Hz |
Handling Capacity | 10-10000L |
Rotating Speed | 0-1450rpm |
Mode of Speed control | Frenquency conventor control |
Material in contact | SS304 or SS316L |

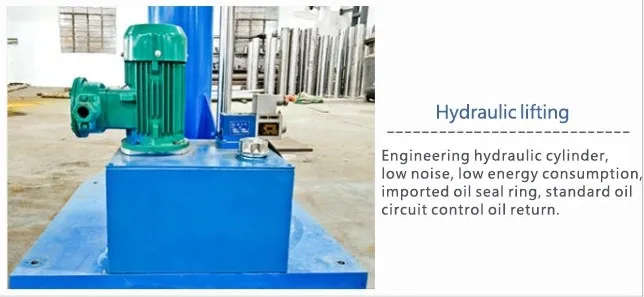

Mode of Lifting | Hydraulic lifting |
Framework | Stainless Steel, Carbon Steel |

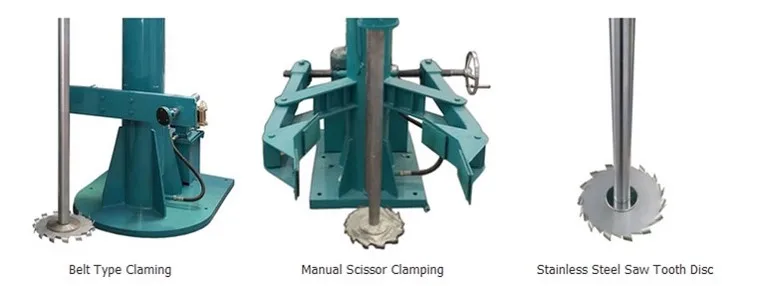

Various sispersion disc available
Detailed Images
Size Information
Main Parameters
Model | Power | Max speed | Diameter plate | Lifting distance |
HKJC-5.5 | 5.5kw | 1400r/min | 100-200mm | 700mm |
HKJC-7.5 | 7.5kw | 1400r/min | 200-300mm | 900mm |
HKJC-11 | 11kw | 1400r/min | 200-300mm | 900mm |
HKJC-15 | 15kw | 1400r/min | 200-300mm | 900mm |
HKJC-18.5 | 18.5kw | 1250r/min | 300-400mm | 1200mm |
HKJC-22 | 22kw | 1250r/min | 300-400mm | 1200mm |
HKJC-37 | 37kw | 1250r/min | 300-400mm | 1200mm |
Related Products
Packing&Shipping
After Sales Service
Pre-sales
1. Muti-language consult, English, Chinese, Russia, etc.
2. Suitable, reasonable technical advise and solutions;
3. Lab room with experiments and instruments for test service to obtain data and production experience;
4. Phone: 0086-021-52913185 ~120
Cell: 13611934398
On-sales
1. Project-Manager system: one customer, one project manager.
2. Schematic drawing for core equipments;
3. Production process follow-up;
4. Factory visit for equipment test before delivery;
5. Technical documents, e.g. English version operational manual, drawing of circuit, etc.
After-sales
1. One year warranty;
2. 7×24h service line;
3. Overseas engineering service team for installation and training at your site;
4. Abundant warehouse of spare parts purchasing;
5. Equipment update service;
6. Detailed records of communications;
Company Introduction
FAQ
About Delivery time
Q-----What's the delivery term for making business with us?
A-----Usually we send the shipment in FOB term.However, the terms of CIF are acceptable which depend on the preference of
clients.
About Lead Time
Q------What's the lead time after placing the order?
A------Usually it takes about 15~30 days after we received your confirmation.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What's the Payment Term?
A------By T/T in Advance, or Irrevocable L/C as Sight.
