Professional design dry mortar horizontal ribbon mixer plant,simple dry cement mortar mixing machine

FOB Reference Price:Get Latest Price
$3,000.00 - $15,000.00 / Set | 1 Set/Sets (Min. Order)
Production Capacity:
1-3 t/h
Lead Time:
Quantity(Sets) 1 - 2 3 - 5 >5
Est. Time(days) 15 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
2 years
Core Components:
PLC, Engine, Bearing, Gearbox, Gear
Condition:
New
Application:
dry mortar plant
Place of Origin:
Henan, China
Brand Name:
huikang
Voltage:
380/220v,480v
Power:
18kw
Dimension(L*W*H):
depending on working site
Weight:
3.8t
Features:
simple
Certification:
ISO,CE,CCC
Warranty:
1 Year, 12 Months
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Easy to Operate
Raw material:
Sand Cement Additives
dry mortar plant floor area:
15 m2
dry mortar plant mixing time:
15 minutes
Overall dimension:
3680mm*1200mn*2200mm
lift device:
feeding screw conveyor
Capacity:
1 Ton/batch
Mixer model:
HK1000
Advantage:
Convenient Operation,Easy Maintenance
Type:
Manully Feeding Line
Supply Ability
Supply Ability:
1000000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case or as per request
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 2 3 - 5 >5
Est. Time(days) 15 30 To be negotiated
Video Description
Product Description

Product Application

Dry mortar                                                              Putty powder
Insulation mortar                                                  Masonry mortar
Thin and Smooth wall mortar                             Plaster powder
Water proof mortar                                               Ceramic tile adhesive mortar
Wall plastering mortar                                          Heat-preservation mortar

Item
Specification
Power(kw)
Screw conveyor
1
2.2
Screw conveyor
1
2.2
Horizontal ribbon mixer
1
7.5
End product silo
1
Valve packer
1
3
Air compressor
1
2.2

Main Features

1.Small investment and best for individuals


2.Small footprint ,ordinary houses can build the factories

3.Easy to operation ,2-3 people can make it

4.High yield ,1T for every shift ,the output is 3-5T/h

5.Easy to maintenance

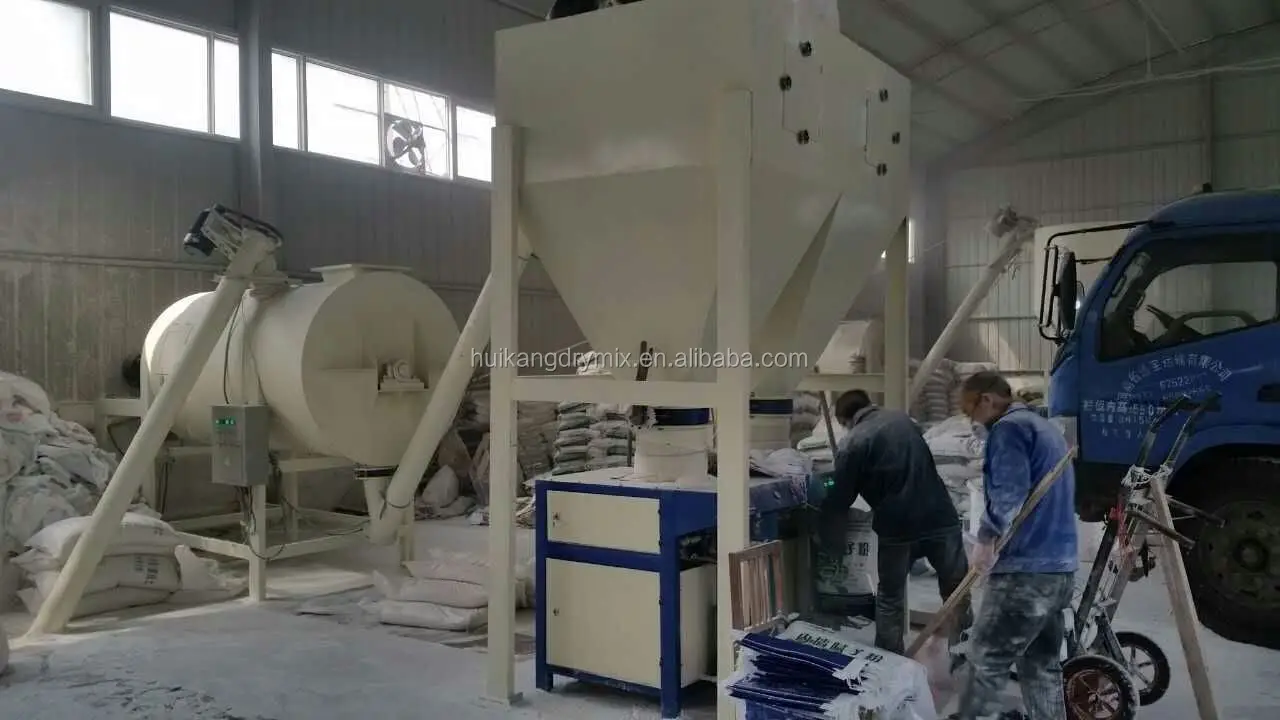

Working process

1.Feeding raw materials to screw conveyor manually,

2.then dry mortar is sent by screw conveyor to screw mixer,

3.after mixing in mixer, then will be sent by screw elevator to vertical finished product silo for storage,

4.then packed in bags using valve packing machine.

Detailed Images

Machine Parts

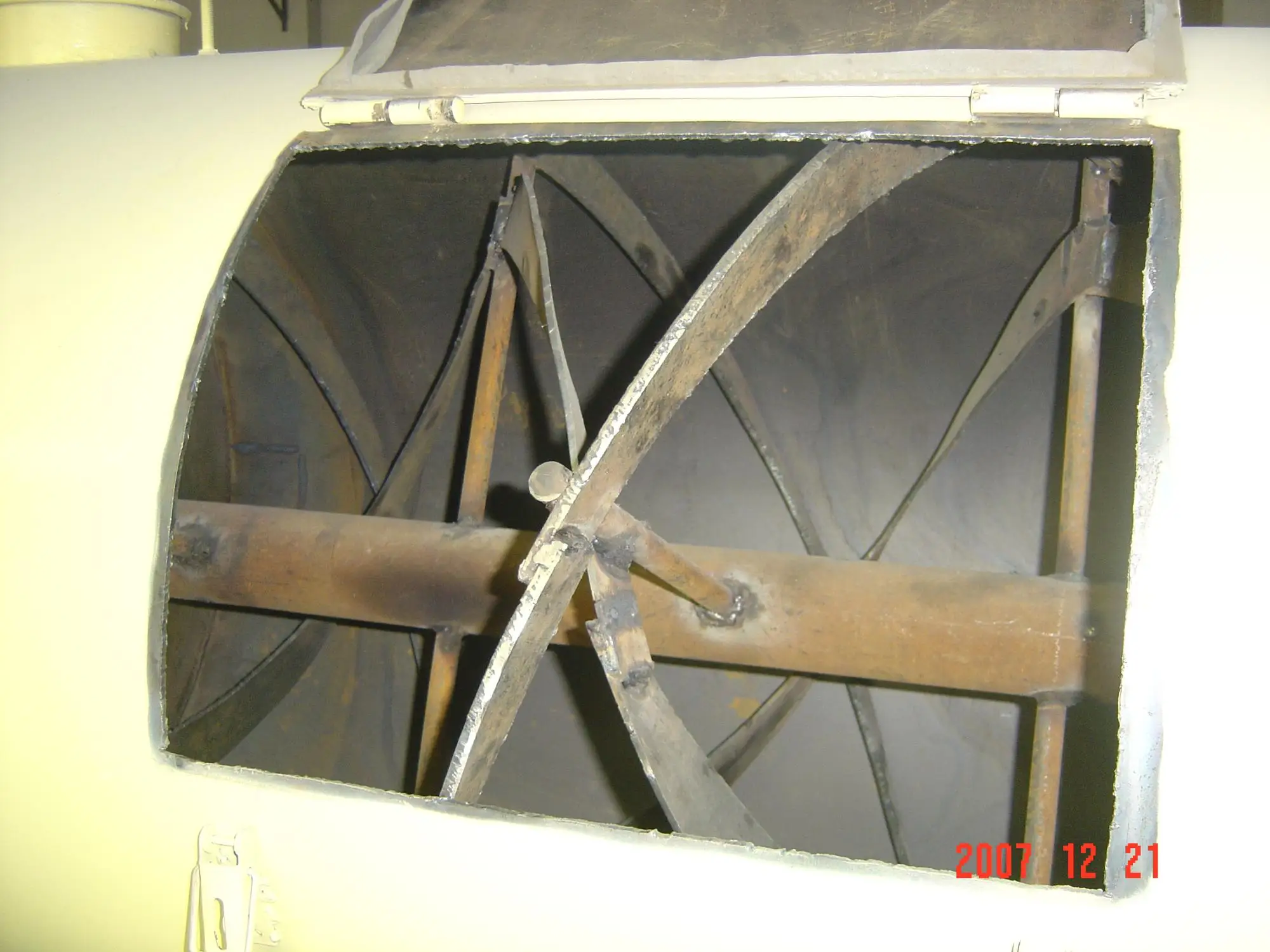

Name: Multi spiral ribbon mixer

1.high power and low noise cycloid reducer to achieve fast mixing speed, stable rotating, low noise, and long operating life.


2.The fuselage has a viewing port, clean port, and materials addition port so as to clean and maintenance expediently, which is a truly multi-purpose machine


Main Features

3 layers ribbon

The circular cylinder body thoroughly achieves no dead corner, no-residue, mixing uniformity improves over 99%.



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
