outdoor wall cement based tile adhesive mix machine/ floor tile adhesive and grout production line

  • 1 - 4 Sets
    $26,000.00
  • 5 - 9 Sets
    $20,000.00
  • >=10 Sets
    $18,000.00
Production Capacity:
5-8 t/h
Model Number:
HKJC2000
Lead Time:
Quantity(Sets) 1 - 5 6 - 20 21 - 100 >100
Est. Time(days) 30 50 70 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
3 years
Core Components:
PLC, Engine, Bearing, Gearbox, Gear
Condition:
New
Application:
thermoplastic paint dry mix
Place of Origin:
Henan, China
Brand Name:
HUIKANG
Voltage:
220V/60Hz 380v, 50hz
Power:
56 kw
Dimension(L*W*H):
as local area
Weight:
25 t
Features:
Easy operation
Certification:
ISO9001/CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Remote Monitoring
Capacity:
5-8 t/h
Mixing time:
1-5 mins/batch
Packaging:
10-50kg/bag
Batching and weighting:
semi automatic
Mixer:
2000L double shafts
Mixer Volume (L):
2000
Worker Required:
3-5 Workers
Packing machine:
Impeller
Type:
Manually Feeding Line
Packing system:
valve bag
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details
full container
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 6 - 20 21 - 100 >100
Est. Time(days) 30 50 70 To be negotiated
Video Description
Product Description

Description of outdoor wall tile adhesive mix machine/ floor tile adhesive and grout production line


ceramic tile adhesive mixing machine (or dry mortar machine) is a set of machinery that produces dry mortar (also known as dry premixed mortar or cement mortar) for construction industry and other uses.

The whole process of ceramic tile adhesive mixing machine is controlled by full automatic computer program, mainly divided into following eight parts.

1.Wet Sand Drying System: reduce the water content of sand

2.Raw Materials Storage System: store all kind of raw materials like aggregate, cement, additives and etc;

3.Lifting & Conveying System: bucket elevator, belt conveyor, screw conveyor, enmasse drag conveyor;

4.Weighing System: weigh main and auxiliary materials by computer program;

5.Mixing System: evenly mixed materials by double axle mixer, ribbon mixer and etc;

6.Packing System: finished products are packed in bags or in bulk form, then transported to other sites or stored in silos;

7.Dust Collector System: collect dust to keep a safe working and living enviroment;

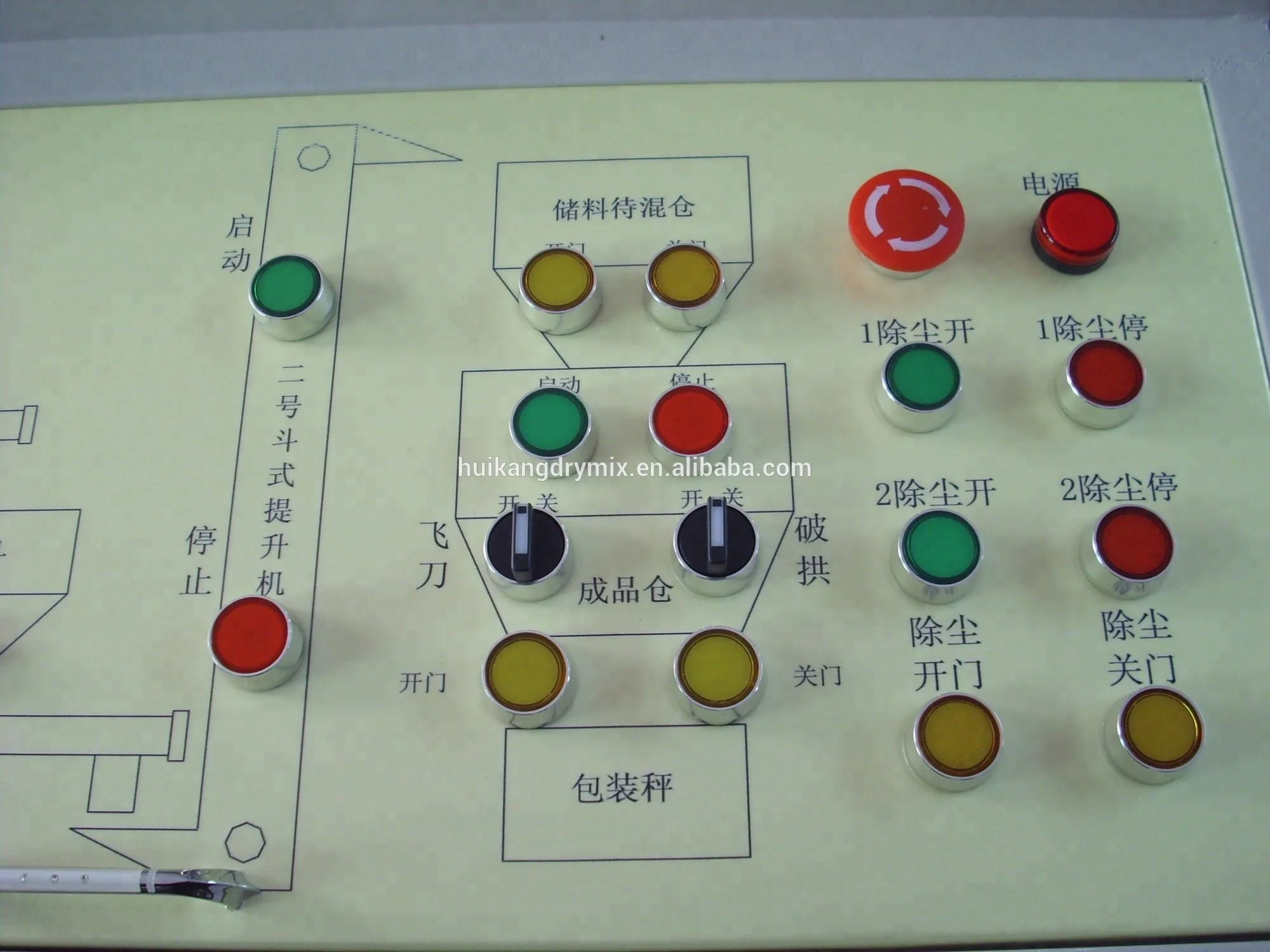

8.Electric Control System: electricity control cabinet and automatic control system.

SPECIFICATIONS of outdoor wall tile adhesive mix machine/ floor tile adhesive and grout production line

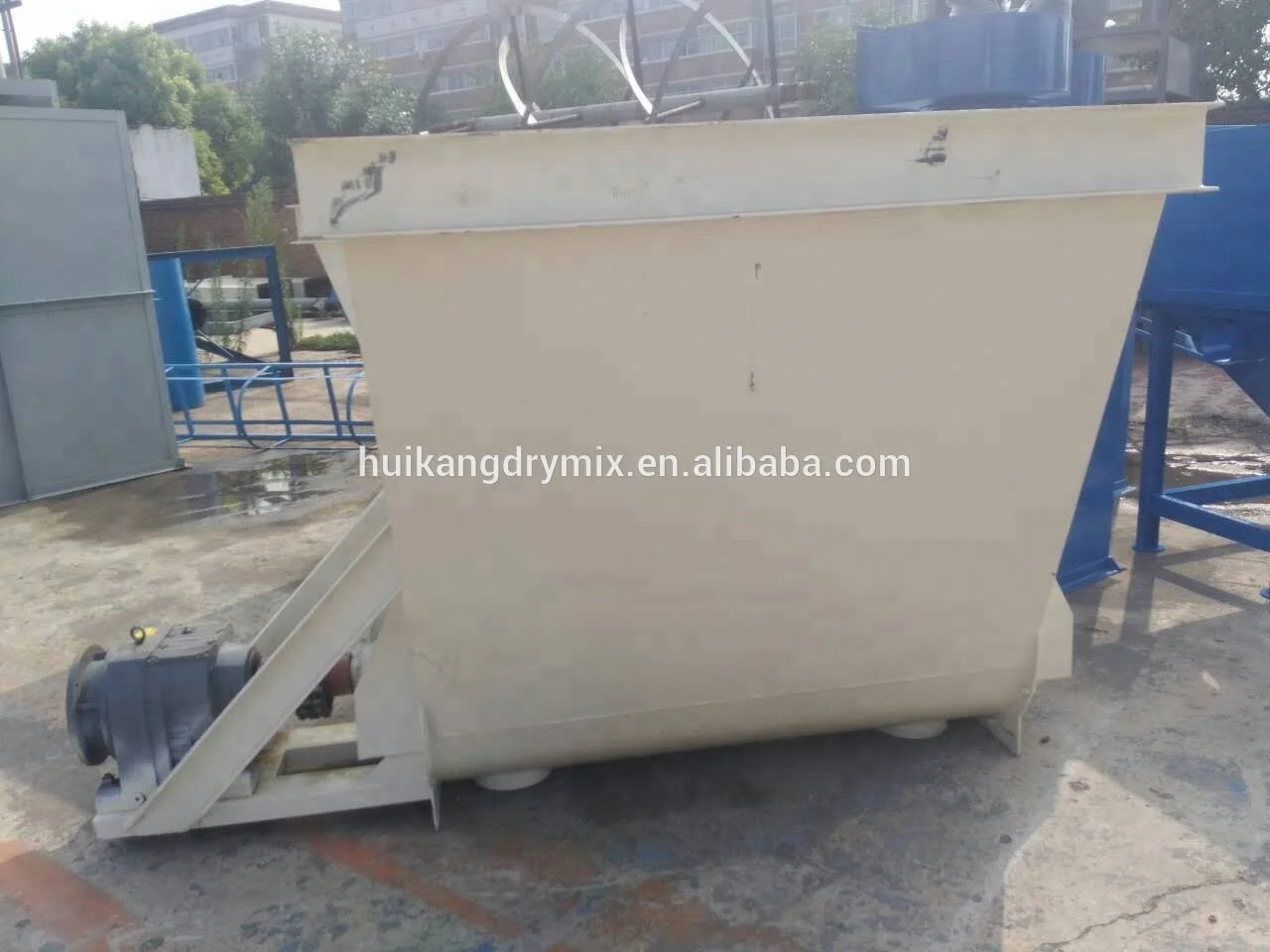

The mixer
type
double shafts
2m3
Mixing cycle
5 minutes
batch
Power
22.5kw
380V


Production line parameters
Cover area
100m2
Indoor
Height
6.5 m
Room 100 m
Auto level
Semi auto
3-5 persons


Packing method
Valve packer
10-50kg
valve bag
Open mouth packer
10-50kg
open mouth bag
Bulk pack or ton bag
Opional

Main Features


Output :1 m3/batch

Mixing time: 5 min.

Power: 55.5kw

Rotate speed: 50 rpm

Discharge method: pneumatic

Weight: 5T

Certifications
Detailed Images

Machine Parts

High quality motor

well painting

Main Features


Brand can be adjusted as your requirement


Machine Parts

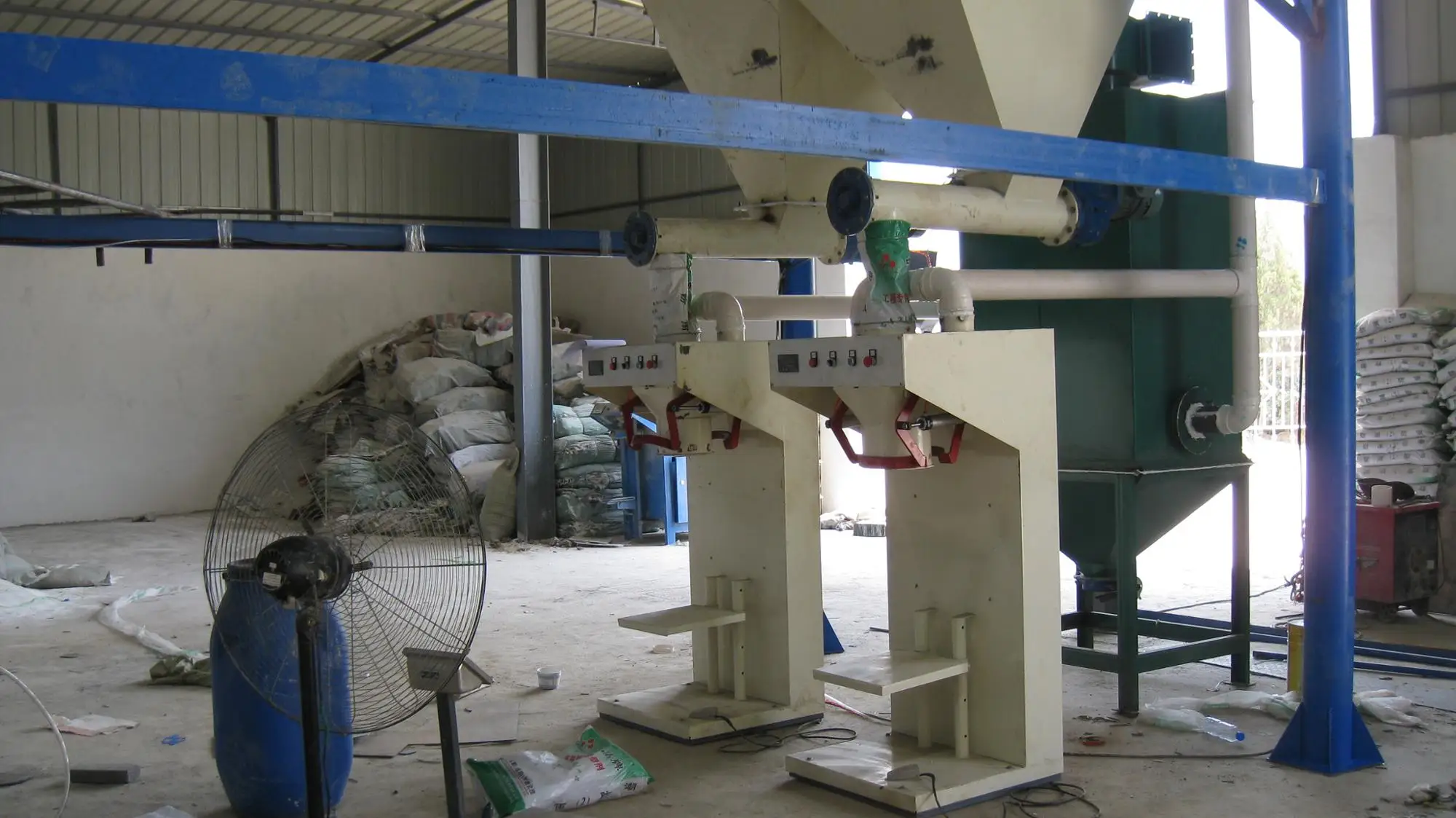

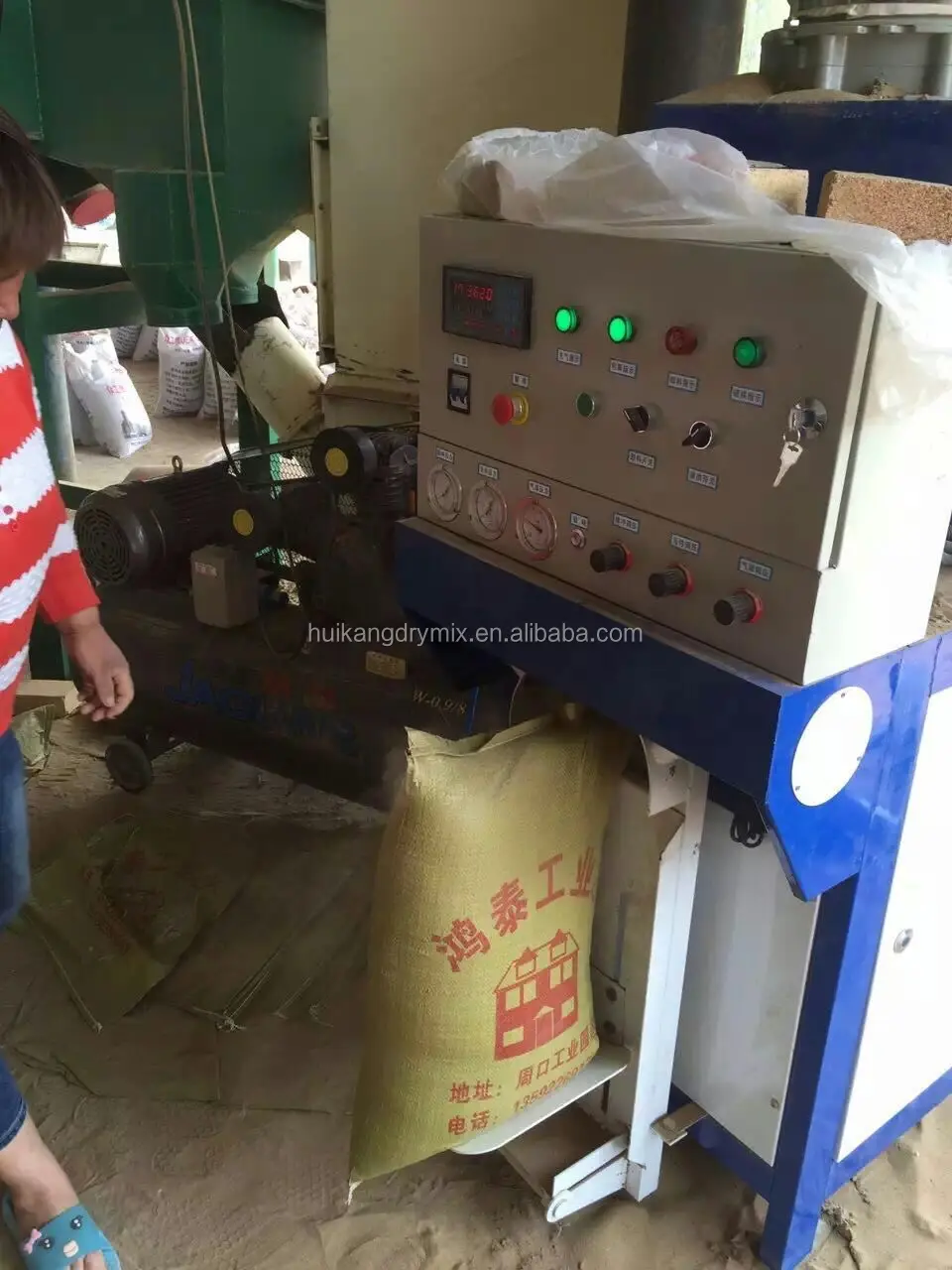

Valve pakcing machine 10-50kg adjustable

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
20ft full container
Weight
1.8 T



Packaging Details
1.20GP,40HQ standard exporting container

2.FCL:Wire cables are used for fastening the machine on the trailer or inside the container. Cork wood are placed in front or behind the machine to protect it.
Packaging
Size
40HQ contianer
Weight
2 T



Packaging Details
1.20GP,40HQ standard exporting container

2.FCL:Wire cables are used for fastening the machine on the trailer or inside the container. Cork wood are placed in front or behind the machine to protect it.
